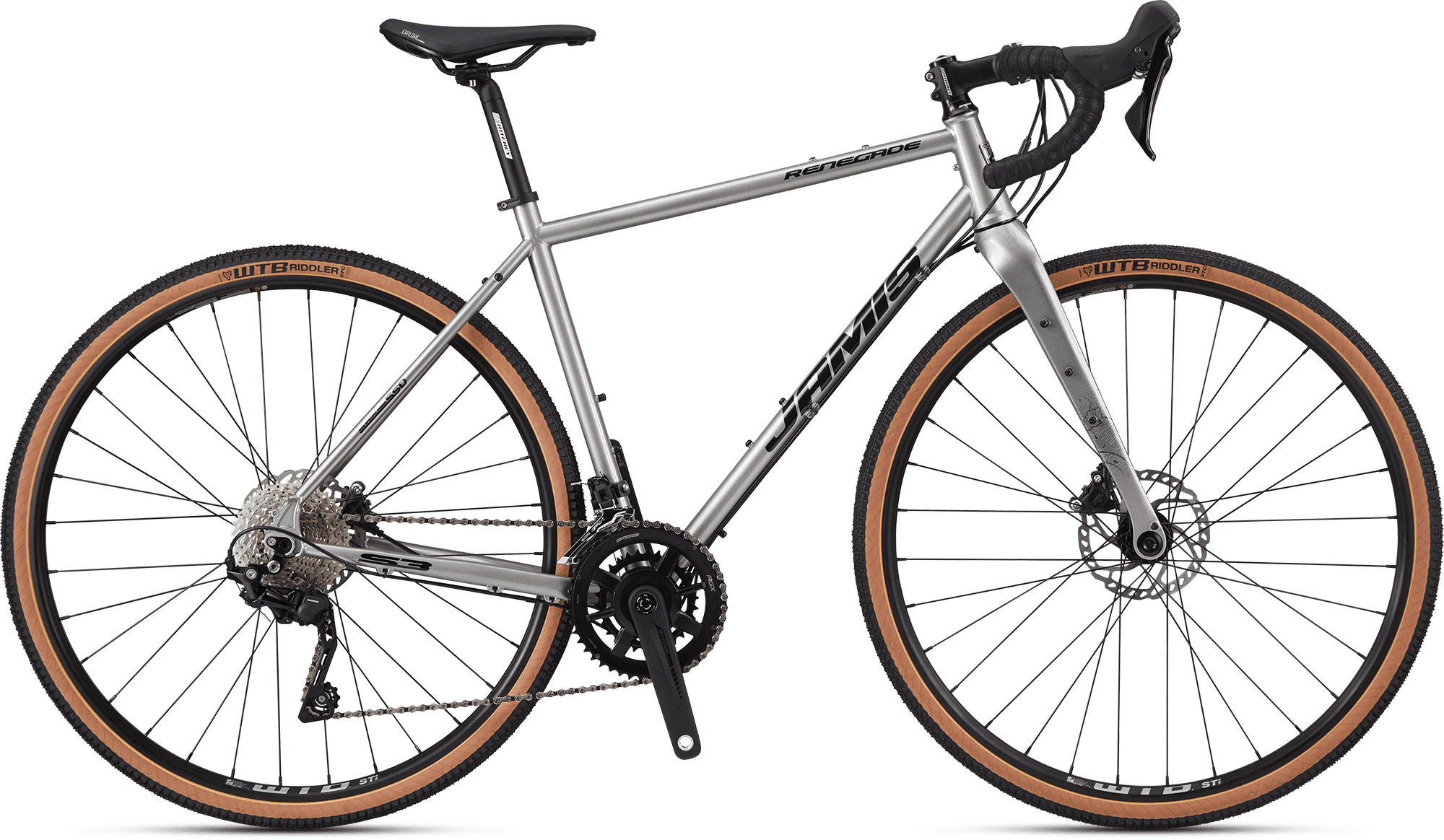

sti gravel bike Jamis Renegade S3

sti gravel bike Jamis Renegade S3Since 2014, the Jamis Renegade Series has been defining versatility in modern adventure bikes. The key is a finely tuned frame and fork design that maximizes handling and comfort whether youre road riding with 28mm tires, adding a rack and fenders for commuting on 32s or exploring the backcountry wilderness fully loaded up on 37mm rubber. (Our steel and aluminum Renegades will accommodate up to a 700c x 50mm 650b x 2. 00.) Read on to understand Jamis

Since 2014, the Jamis Renegade Series has been defining versatility in modern adventure bikes. The key is a finely tuned frame and fork design that maximizes handling and comfort whether you’re road riding with 28mm tires, adding a rack and fenders for commuting on 32’s or exploring the backcountry wilderness fully loaded up on 37mm rubber.

(Our steel and aluminum Renegades will accommodate up to a  700c x 50mm/650b x 2.00”.)

Read on to understand Jamis’ approach to adventure frame design and how it keeps the Renegade’s superior ride quality consistent regardless of tire choice and frame size, on-road or off.

2024 RENEGADE S3 FEATURES:

• Jamis Size Specific Design frame geometry, SST Reynolds 520 double-butted chromoly
• Jamis Adventure ECO monocoque carbon composite, 12mm Jamis MTS (Modular Thru-axle System)
• Shimano GRX ST-RX400 Dual Control STI, 10-speed
• Shimano GRX BR-RX400 flat mount hydraulic disc brakes
• WTB ST i23 TCS 2.0 (UST Tubeless Compliant System) disc rims
• WTB Riddler Comp 700CX37C
• FSA OMEGA Modular DM MegaExo Crankset

BUILD KIT:

• FRAME: UPDATED Jamis Size Specific Design frame geometry, SST Reynolds 520 double-butted chromoly main tubes, tapered head tube for tapered fork, threaded BB shell, 12mm Thru- axle, flat mount chain stay disc brake mounts, down tube mounted full cable housing, internal dropper post ready, 3 waterbottle mounts, TT mounts, rack and fender eyelets.
• FORK: UPDATED Jamis Adventure ECO monocoque carbon composite, 12mm Jamis MTS (Modular Thru-axle System) with stainless interface and carbon dropouts, tapered steerer with 1.5” hollow formed crown, flat mount disc brakes with internal cable routing, exposed fender, lowrider and 3 water bottle eyelets
• HEADSET: FSA OrbitC-40B Internal, 1.5 – 1 1/8”
• WHEELS: WTB ST i23 TCS 2.0 (UST Tubeless Compliant System) disc rims, 32H, Joytec alloy 6-bolt hubs, 14g stainless steel spokes and front 12mm/rear 12×142 thru-axle with Switch Lever
• TIRES: WTB Riddler Comp 700CX37C, 30tpi Casing, Wire Bead (48-61) WTB BYWAY 650CX40C, 30tpi Casing, Wire Bead (44)

• DERAILLEURS: Shimano GRX RD-RX400 Shadow Plus rear and GRX FD- X400 front with 28.6mm alloy clamp
• SHIFT LEVERS: Shimano GRX ST-RX400 Dual Control STI, 10-speed
• CHAIN: KMC 10-speed X10
• CASSETTE: Shimano 10-speed, 11-36T
• CRANKSET: FSA OMEGA Modular DM MegaExo, 46/30T, 165mm (44/48), 170mm (51) 172.5mm (54/56) 175mm (58/61)
• BOTTOM BRACKET: FSA BB-4000 MegaExo
• PEDALS: N/A
• BRAKES: Shimano GRX BR-RX400 flat mount hydraulic disc brakes with resin pads, Shimano 160mm rotors with GRX ST- RX400 Dual Control STI levers
• HANDLEBAR: Ritchey Baquiano Comp, 6061 aluminum, 73 reach, 118 ergonomic drop with 12° flare, 31.8 x 400 (44) 420 (48-51) 440mm (54-56), 460mm (56-61)
• STEM: Ritchey 4-Axis 3D forged 6061 alloy, 6 ̊ x 60mm (44), 70mm (48/51), 80mm (54/56), 100mm (58/61)
• BAR TAPE: Jamis suede tape with gel inserts
• SADDLE: Selle Royal Asphalt with integrated clip system

SIZING: We'd recommend the following sizes based on rider height. Please note this is an approximate range and the buyer is responsible for verifying the fit before purchase.

• 48cm: 4'10" - 5'3"
• 51cm: 5'1" - 5'7"
• 54cm: 5'5" - 5'10"
• 56cm: 5'8" - 6'0"
• 58cm: 5'10" - 6'3"
• 61cm: 6'1" - 6'6"

NOTE: Jamis bikes are only available for LOCAL PICKUP at our shop in Pasadena, CA.
